Interior Panel - Flat Type

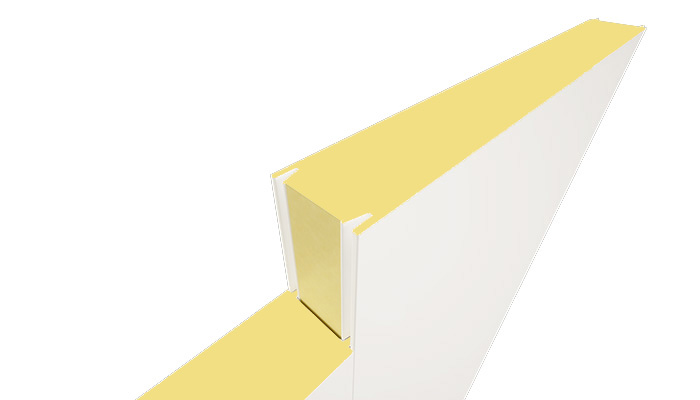

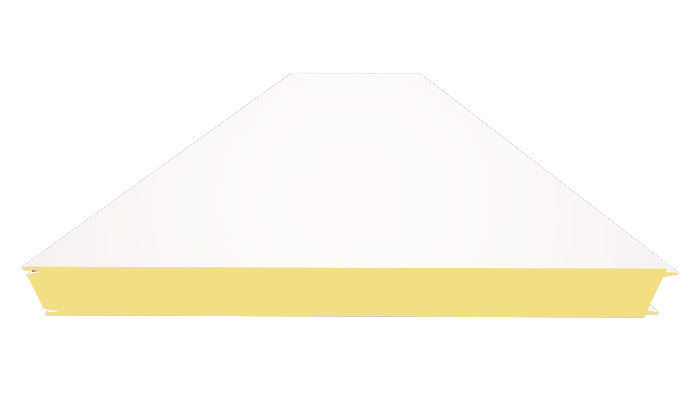

Product Sample

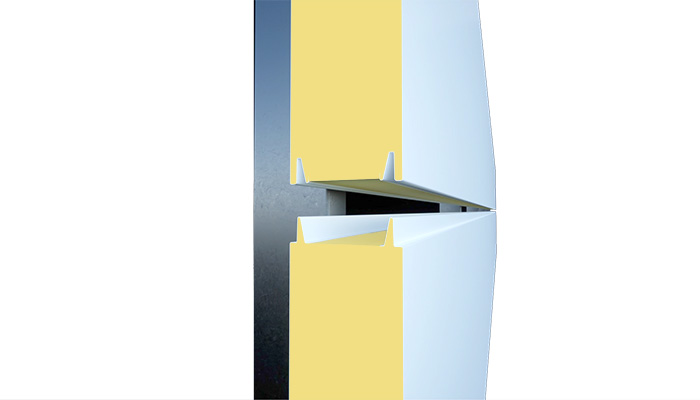

Example Joint of Products

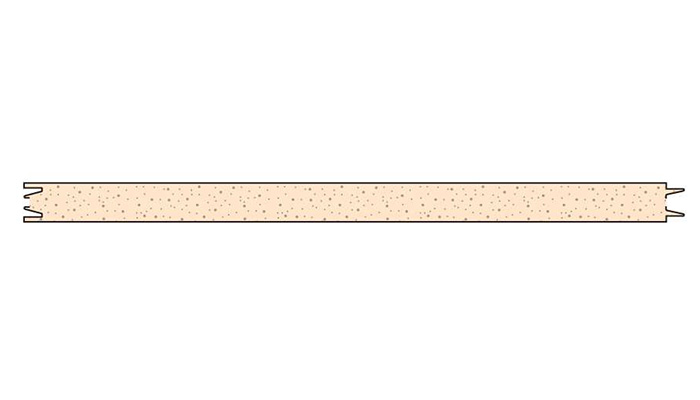

FLAT TYPE

Refers to the smooth and uniform exterior surface of Sandwich Panel walls, which makes them easy to clean and reduces the accumulation of dirt and debris in hard-to-reach areas.

MATERIAL SURFACE
The material is made of galvanized steel coated with a two-layered polyester, providing durability even in high humidity conditions such as cold rooms.
Technical Information of Sandwich Panel

Product Name : Double Standard Skin Insulated Sandwich Panel
Application : Ceiling , Wall, Clean Room, Cold Room, AHU Body
Available Thickness : 42 , 50 , 75 , 100 , 125 , 150 , 175 , 200 mm.
Thermal Conductivity : 0.0176 Kcal/m2 hr. oC
Interior : PPGI with 100 microns PE Protection film
Exterior : PPGI with 100 microns PE Protection film
Joints : Slip Joints
Core Material

Material : Polyisocyanurate(PIR) Foam
